24 / Desktop UI

Adobe Acrobat X

Eight U.S. design patents

Role
UX designer: research, concepts, prototyping, UI framework
Scope
User research, concepts, prototypes and a UI framework for Acrobat X, plus the design patents that came out of it.
Outcome
The work is named on eight U.S. design patents, with two co-inventors.

The problem

Acrobat had grown by adding. Each release brought new menus, toolbars and dialogs, and the people who opened a PDF to fill in a form, leave a comment or combine two files had to search through all of it. Most of them wanted one thing done and had no reason to learn the rest of the application.

The team had to decide where tools, panes and menus lived, and the answer had to hold for a long list of features that did not yet exist. Product management wanted room to add them. Engineering needed a structure it could build once and reuse. Repainting the old layout would have solved neither.

A good result would let a first-time user find the next step on their own, and still give a power user the tools they already knew.

Acrobat was also more than one product. The same structure had to serve Acrobat and Reader, on the desktop, inside a web browser and embedded in other software, so a decision made for one surface had to hold on all the others.

The approach

I started by watching how people used Acrobat, then sketched a framework, then proved the interactions in prototypes before anyone wrote production code.

  1. 01

    Researching how people use Acrobat

    I began with user research into what people actually did in Acrobat and where they got stuck. The pattern was a short list of everyday tasks buried among a very long list of rare ones. That gave the team a rule for the new interface: common tasks within reach, rare ones one level down.

    The research pattern boiled down to one layout rule. A few everyday jobs stay close to the user, and the long tail of rare ones moves down a level.
  2. 02

    Sketching the framework

    I sketched on paper first. A toolbar and task area across the top, a document space in the middle, and a tools pane at the side. A second drawing showed a reading mode where everything but the page stepped back. A grid compared Acrobat with Reader on the desktop, in browsers and embedded, so one structure could cover all of them.

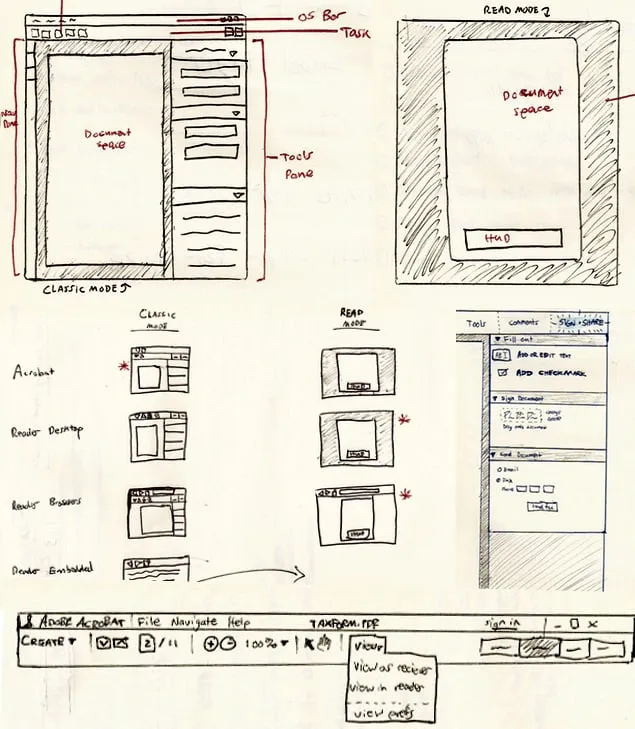

    Early conceptual sketches for the new UI framework.
  3. 03

    Grouping tools in the side pane

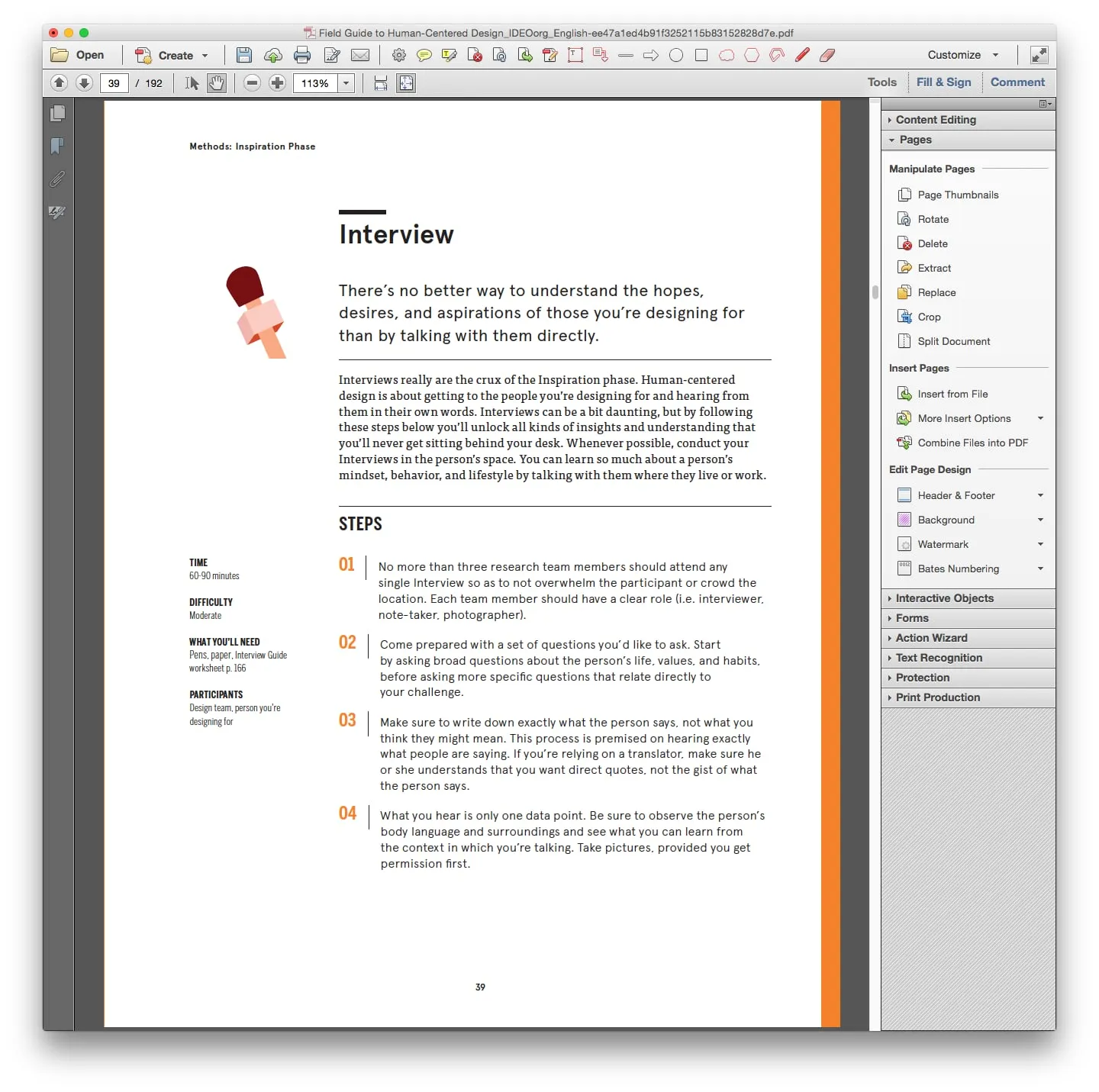

    The tools pane became the home for everything that did not need to be on screen all the time. I grouped tools into named sections and kept only one open at a time, with the rest collapsed to a single line. Content Editing, Pages, Forms and Action Wizard could each grow without making the pane any longer.

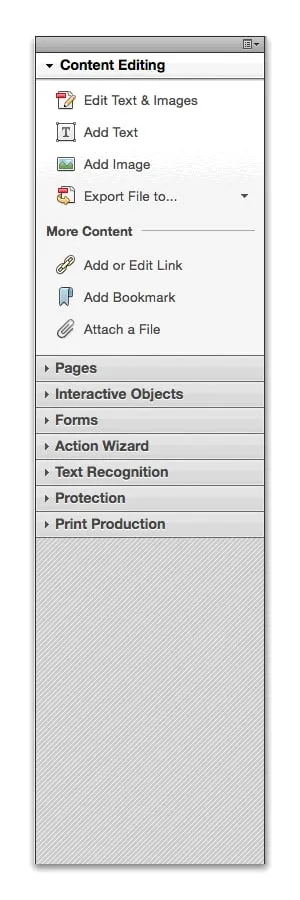

    Tools pane.
  4. 04

    Redesigning the Create menu

    Creating a PDF could start from a file, a screen capture, a scanner, a web page or the clipboard. Instead of separate commands scattered across menus, I put them in one Create menu on the main toolbar with keyboard shortcuts shown where they exist. Combining files, making a form and building a portfolio sit below a divider.

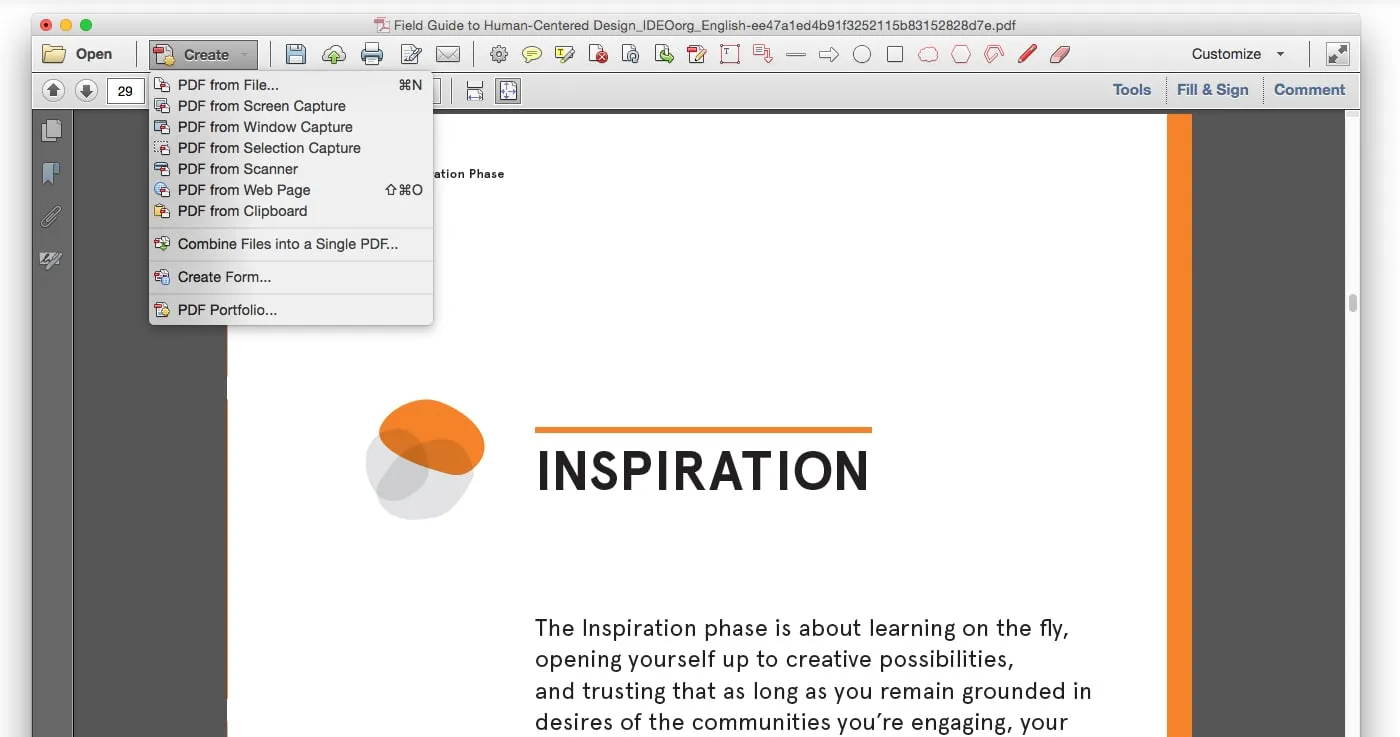

    Create menu.
  5. 05

    Stepping back in reading view

    For people who only wanted to read, I designed a view with the toolbars gone. A small floating control bar at the bottom holds save, print, page navigation and zoom. The idea was that the interface should match what the person is doing, and a reader should see the document first.

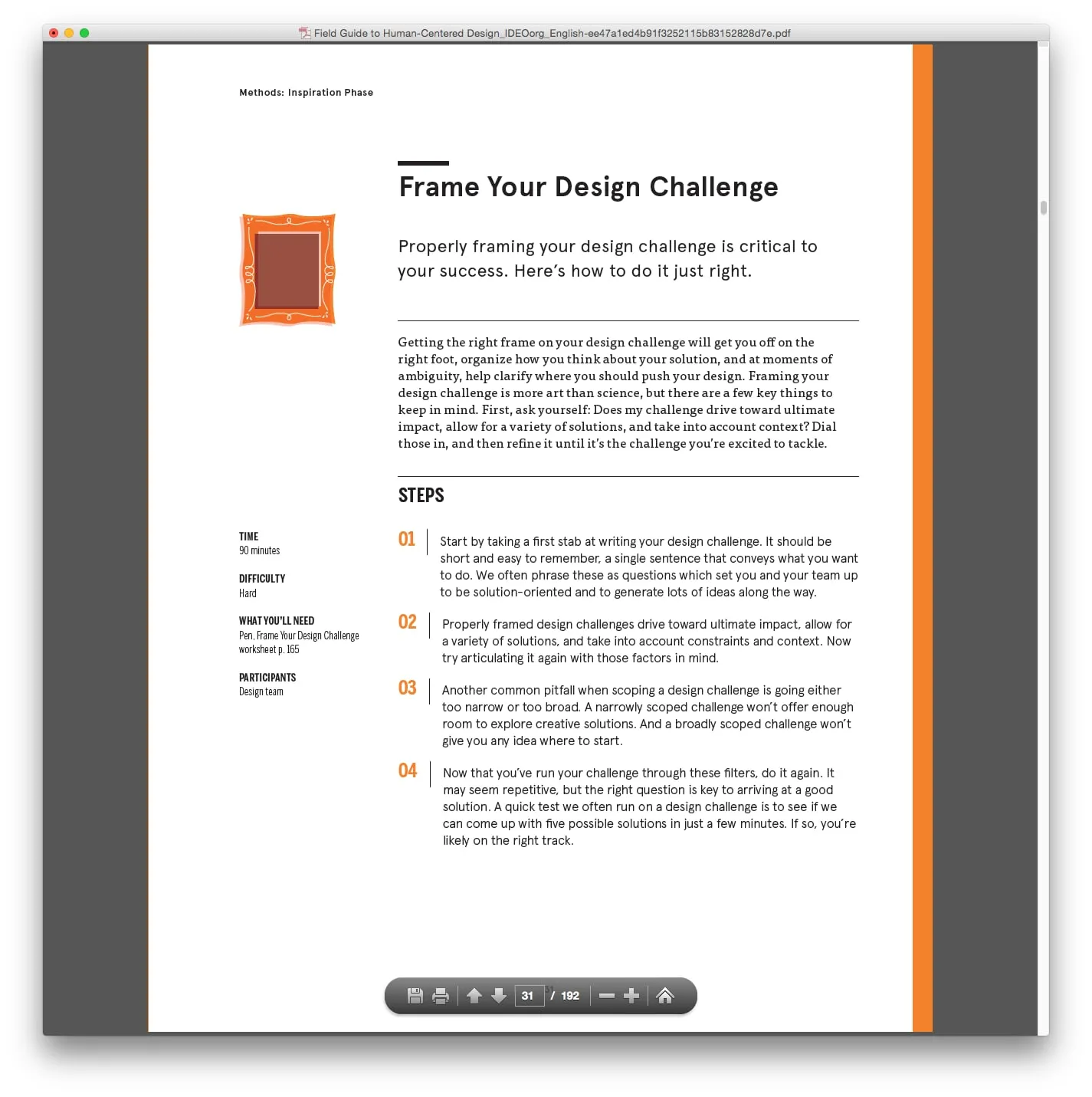

    Reading view with a floating control bar.
  6. 06

    Prototypes and screencasts

    I built the new interactions as prototypes so product management could try them and engineering could see how they behaved. Where a prototype was too slow to explain a flow, I recorded a screencast. Documentation went alongside, so the intent behind each pane and menu was written down.

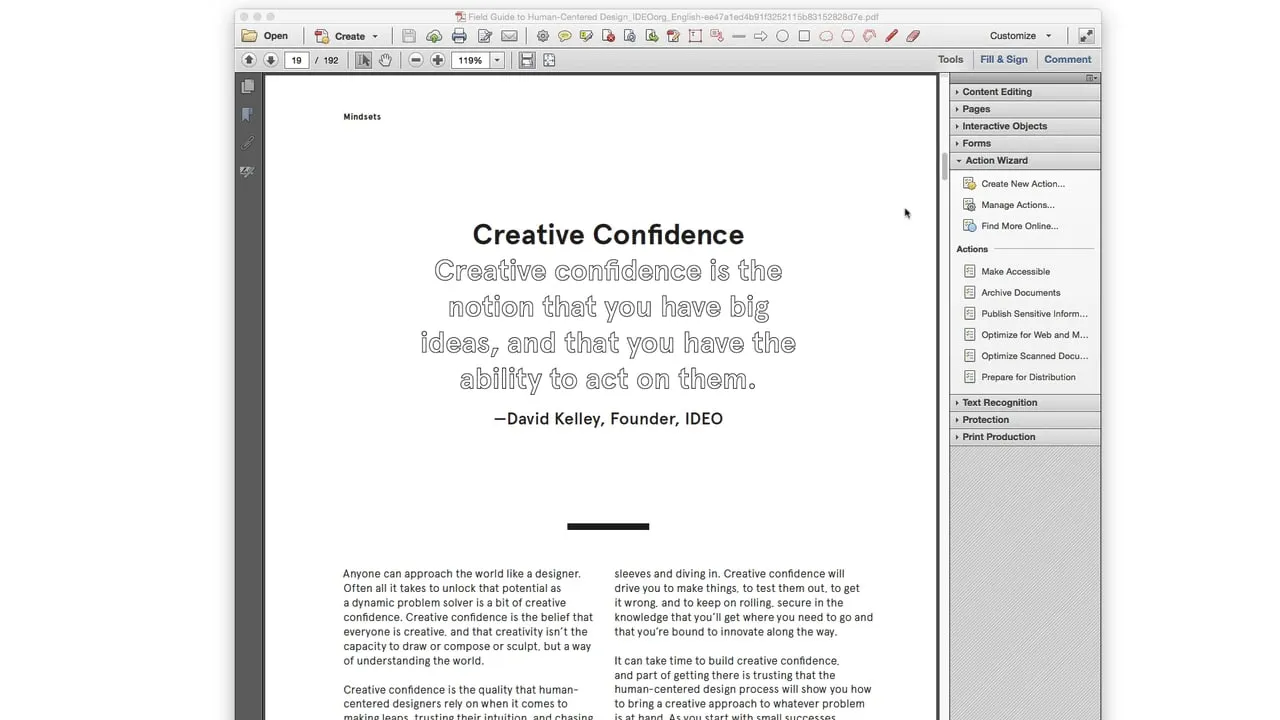

    The recording shows how a custom action gets built, tool by tool. A prototype like this let product management and engineering see the behavior, not just the screen.

The solution

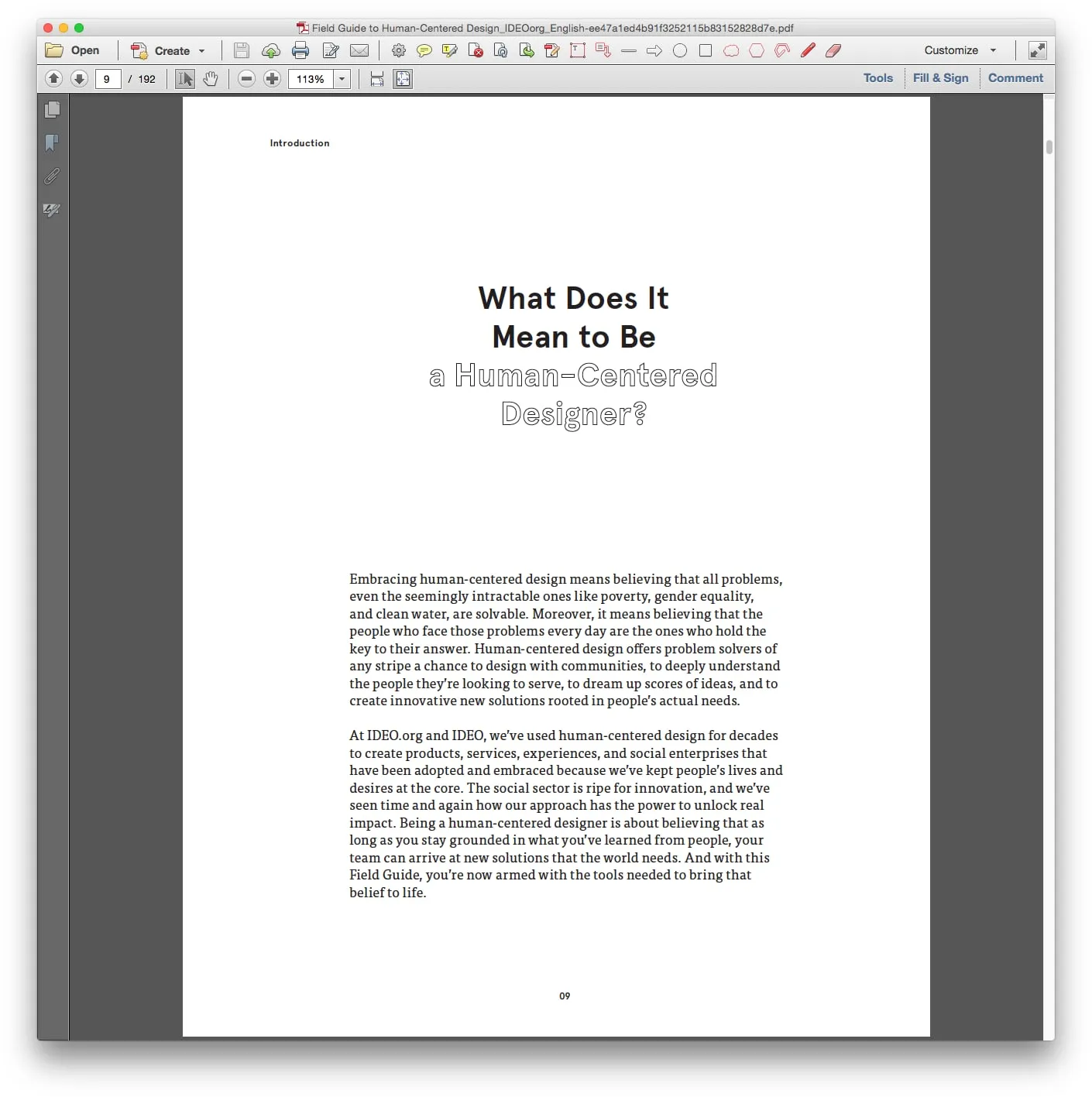

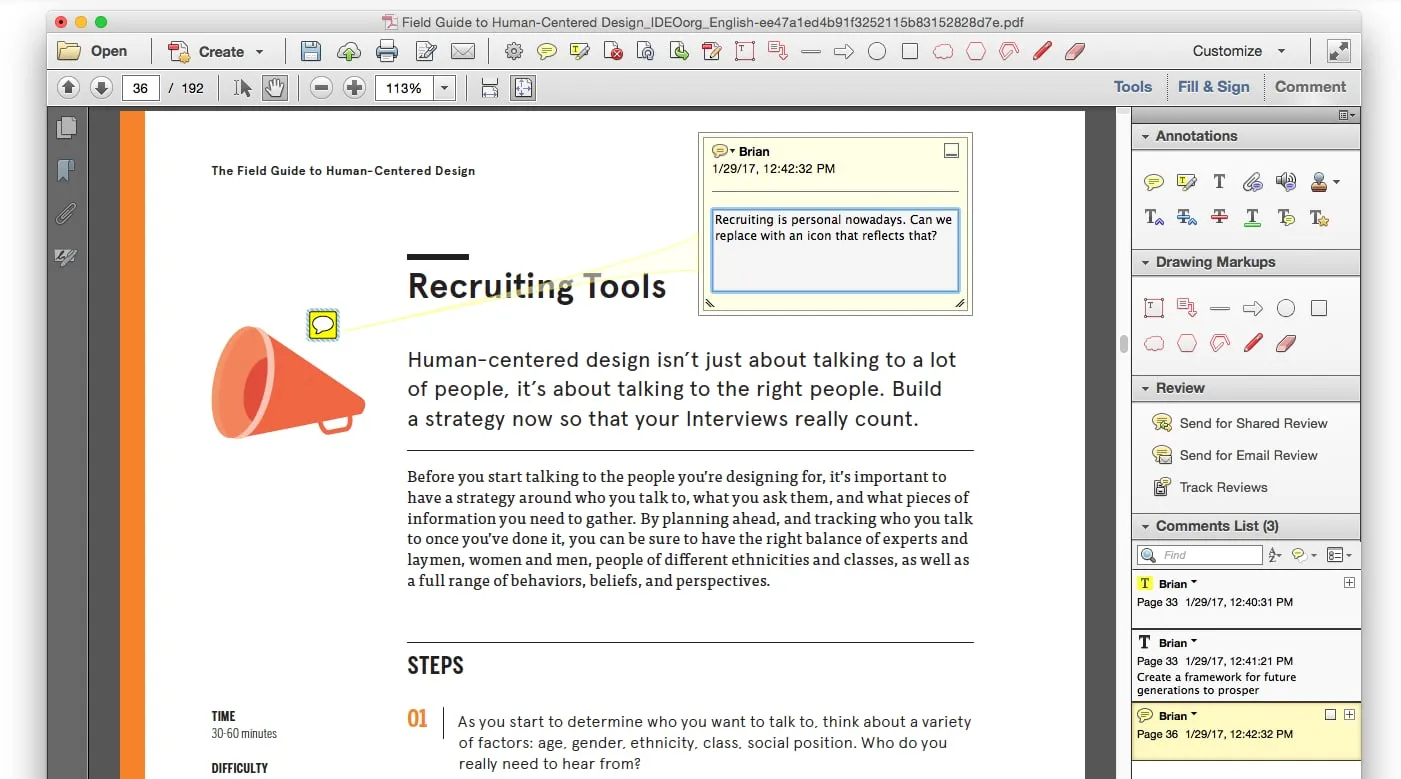

The new Acrobat opened on the document. A main toolbar held the common actions and a Create menu. At the right, three tabs named Tools, Fill & Sign and Comment switched the side pane between jobs. Under Comment sat annotations, drawing markups, review options and a comments list, so a reviewer could mark a page and see every note in one column.

The framework did the work. Tools, panes and menus each had a defined place and a defined behavior, so a new feature had somewhere to go before it was designed. The same structure covered Acrobat and Reader, and it adapted to context. When a person was reading, the interface got out of the way.

Decisions along the way

  • Common tasks within reach

    Research showed a short list of everyday tasks buried among a long list of rare ones. That became the rule for the whole interface: common tasks on the toolbar, rare ones one level down.

  • One section open at a time

    The tools pane groups tools into named sections and keeps only one open, with the rest collapsed to a single line. Content Editing, Pages, Forms and Action Wizard can each grow without making the pane longer.

  • One Create menu

    A PDF can start from a file, a screen capture, a scanner, a web page or the clipboard. Those commands moved into one Create menu on the main toolbar, with combining files, forms and portfolios below a divider.

  • Reading view steps back

    For people who only want to read, the toolbars go away and a small floating bar holds save, print, page navigation and zoom. The interface follows what the person is doing.

What I delivered

  • User research into how people work in Acrobat
  • Concept sketches for the UI framework
  • Interactive prototypes and screencasts
  • Tools pane, Create menu and review and annotation designs
  • Documentation for product management and engineering
  • Eight U.S. design patents, with co-inventors

See it working

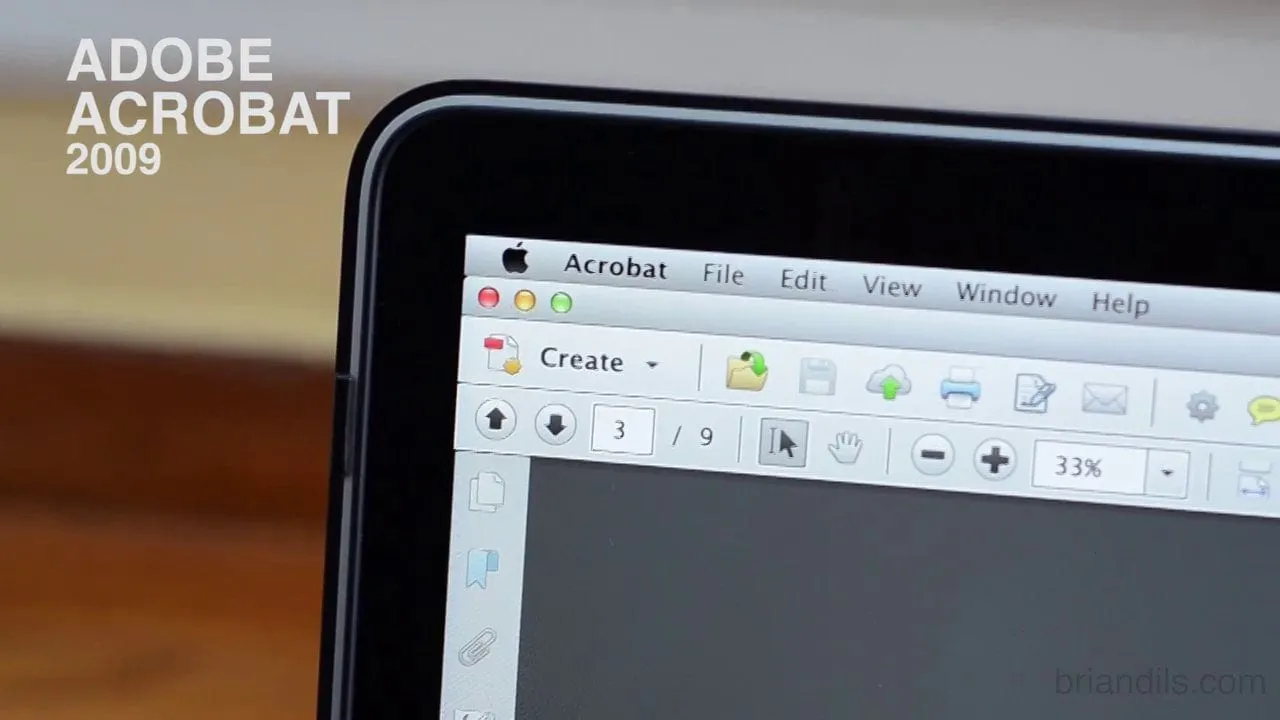

A walkthrough of the Acrobat work.1:08 · Watch on Vimeo ↗

Value added

  • For people using it

    People could find the next step from the screen in front of them. Everyday actions sat on the toolbar, specialist tools sat in named sections, and reading a document no longer meant looking at controls that had nothing to do with reading.

  • For the business

    A defined framework gave Acrobat a structure that could take new features without another rebuild. The interface itself became protectable work, recorded in design patents that name Adobe Systems as the assignee.

  • For the team

    Prototypes, screencasts and documentation gave product management and engineering the same picture. Questions about how a pane should behave could be answered by opening the prototype instead of arguing about a static screen.

By the numbers

Eight design patents from one filing

Each bar runs from the shared priority date, November 1, 2010, to the day that patent was granted.

D678,898
D682,853
D688,689
D731,516
D731,517
D731,518
D731,519
D732,061
View as table
ItemYearsNote
D678,898Filed 1 Nov 2010, granted 26 Mar 2013
D682,853Filed 1 Nov 2010, granted 21 May 2013
D688,689Filed 4 Feb 2013, granted 27 Aug 2013Priority 1 Nov 2010
D731,516Filed 4 Feb 2013, granted 9 Jun 2015Priority 1 Nov 2010
D731,517Filed 4 Feb 2013, granted 9 Jun 2015Priority 1 Nov 2010
D731,518Filed 4 Feb 2013, granted 9 Jun 2015Priority 1 Nov 2010
D731,519Filed 4 Feb 2013, granted 9 Jun 2015Priority 1 Nov 2010
D732,061Filed 4 Feb 2013, granted 16 Jun 2015Priority 1 Nov 2010

Source: Google Patents, one page per patent (opens in a new tab)

The result

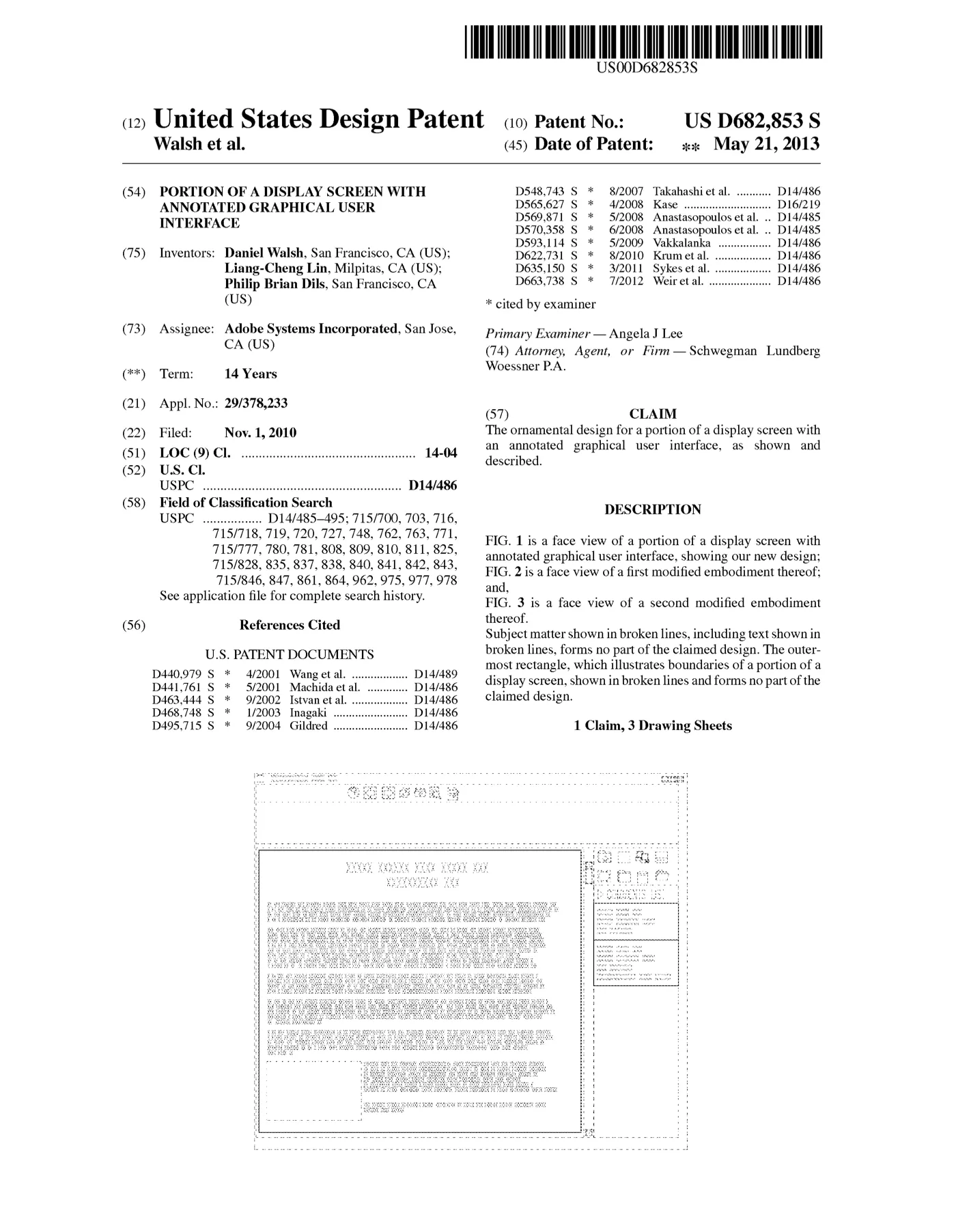

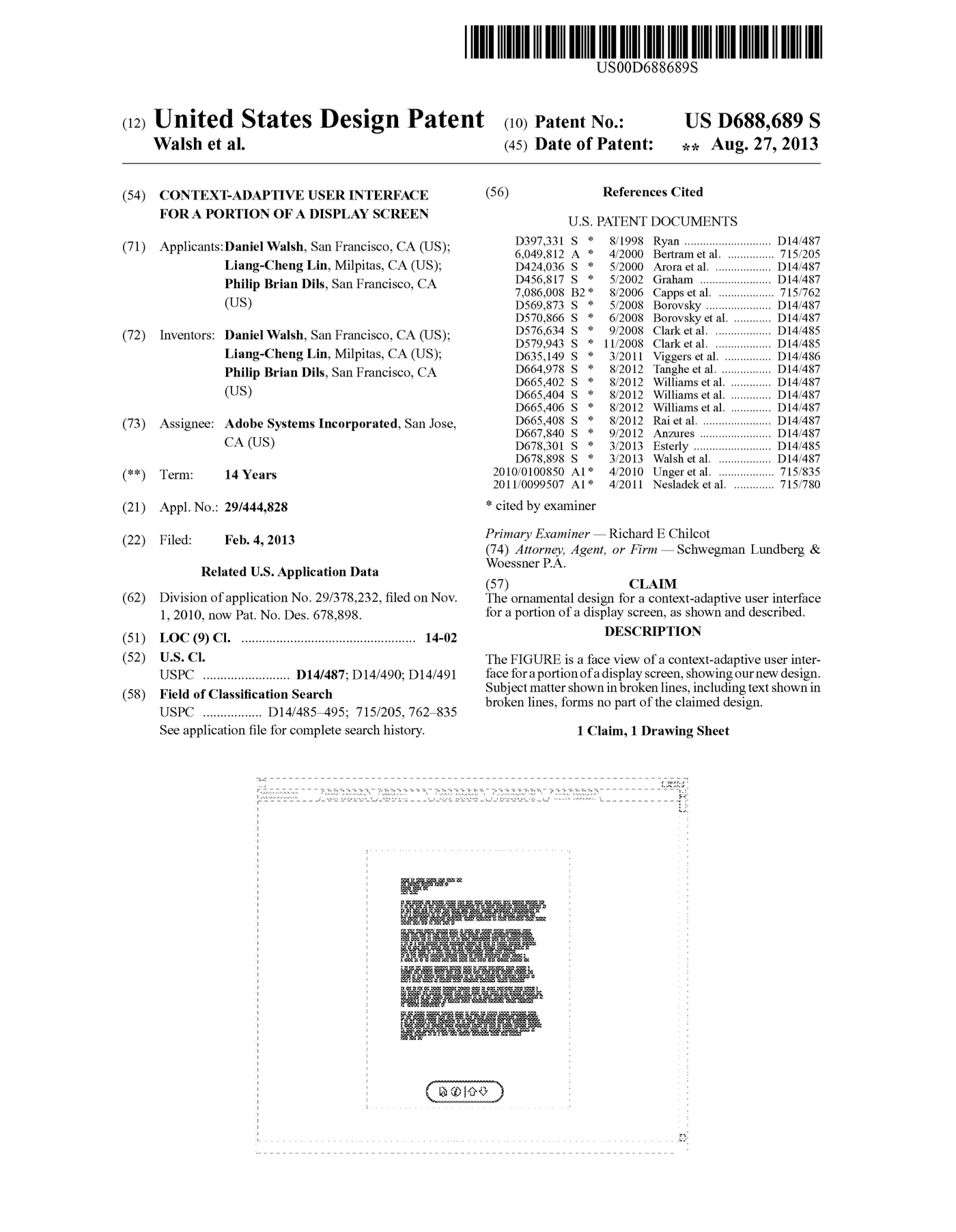

The work led to design patents. I am named on eight U.S. design patents, including US D682,853 S and US D688,689 S, with Daniel Walsh and Liang-Cheng Lin as co-inventors.

Results

  • 8U.S. design patents, with Daniel Walsh and Liang-Cheng Lin as co-inventors

Patents US D682,853 S, US D688,689 S, US D678,898 S, US D731,516 S, US D731,517 S, US D731,518 S, US D731,519 S, US D732,061 S. All eight patents on Justia ↗ (opens in a new tab)

What I took from it

A framework only works if the people building it can see the rules, so I would write the documentation alongside the first prototype instead of at the end. The sketch that compared Acrobat with Reader surfaces was also the most useful single page of the project, and I would start there next time. The design patents are a fair test of that idea: the rules for where tools, panes and menus go were specific enough to be drawn and filed.

Background

Adobe announced the Acrobat X family in October 2010. Macworld reported that Acrobat X Pro launched on November 15, 2010. It had a customizable Quick Tools toolbar and an Action Wizard for automating tasks with several steps. Design patent D682,853 was filed on November 1, 2010. It names Daniel Walsh, Liang-Cheng Lin and me as inventors, and Adobe Systems as the assignee. Google Patents lists eight U.S. design patents with a priority date of November 1, 2010 that name the same three inventors: three were granted in 2013 and five in June 2015, all assigned to Adobe.
